LinFloor SC600 Calcium Sulphate Raised Floor System
SC600 Series is modular system made of homogeneous high density calcium sulphate constituted of gypsum and vegetable organic fibres, with high physical-mechanical performance, excellent fire-resistance and high levels of sound-proofing, suitable for working and executive environments, and is widely used in Office Building, Data Center, Renovation, and Underfloor Air Distribution applications.
Calcium Sulphate Panels & Understructures

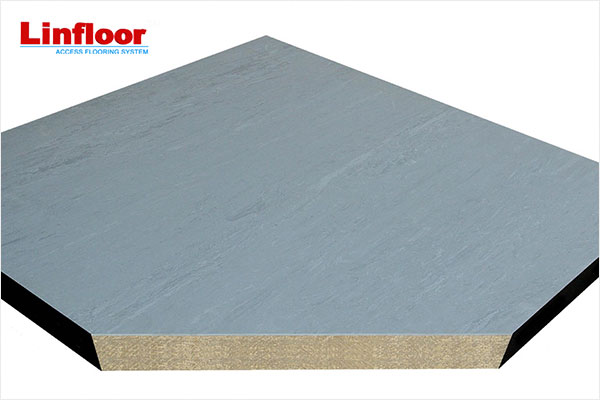

Floor panel is encapsulated to provide full steel encasement, steel to be high quality galvanized steel sheet as top and bottom. High density calcium sulphate as the core, the galvanized steel sheet/aluminum foil is bonded to the bottom. HPL or PVC is stuck to the top, four edges sealed with PVC edging strip.

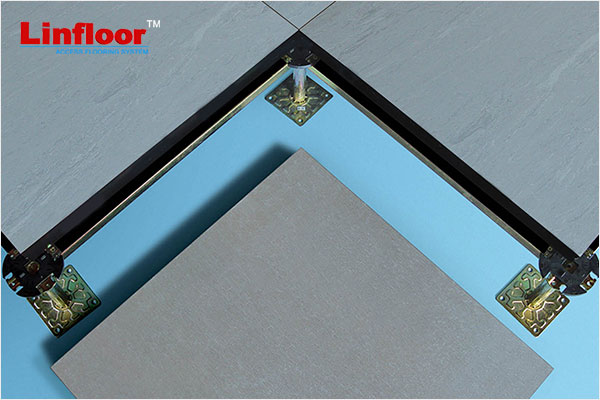

Calcium Sulphate Raised Floor Panel + Rigid Grid System

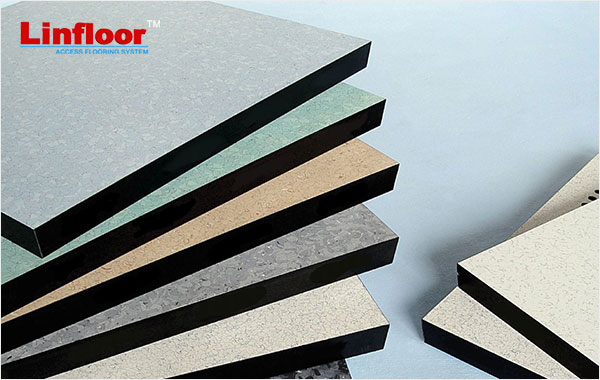

Finishes : Bare / HPL / PVC / Aniti-Static PVC
Dimension: 600mm x 600mm x 28-30mm / 38-40mm
Perforated panel airflow rate 40%, dampers optional,
Steel pedestals provide excellent impact load performance,
Vibration proof locking nut for fast and stable installation,
Steel stringer provides excellent loading performance.
Loading Performance
Linfloor SC600 Calcium Sulphate HPL/Zinc Finish Raised Access Flooring System | ||||||||||
Type | Panel Size | System Weight | Impact | Dynamic | Concentrated | Ultimate | Uniform | U-UDL | Rolling Road | |
Kg/M² | Load Kg | Load Kn | Load Kn | Load Kn | Kn/M² | Kn/M² | 10(N) | 10K(N) | ||
HPL/Zinc | With Deflection 2.5mm² | Passes | Passes | |||||||
U800 | 500X500X28/30/38/40mm | ~31 | 40 | 3 | 3 | 9 | ≥8.5 | 16.8 | 2750 | 2270 |
U1000 | ~34 | 50 | 4.5 | 4.5 | 13.5 | ≥12.79 | 24 | 3650 | 2750 | |
U1250 | ~36 | 50 | 6 | 6 | 18 | ≥16 | 32 | 4560 | 3650 | |
Testing Qualification | CISCA 1986/87, MOBPF2 PS/SPU1992, BSEN 12825-2001, SJ/T10796-2001, PSB | |||||||||
CS System | PSA MOB Grade | Concentrated Load (kN, 2.4mm) | Uniform Load (kN/m²) | Safety Factor | Softbody Impact (40kg, 1000mm) | Hardbody Impact (4.5kg, 600mm) |
U800 | Medium | 3 | 12 | 3 | Pass | Pass |
U1000 | Heavy | 4.5 | 20 | 3 | Pass | Pass |
U1250 | Extra Heavy | 5.5 | 30 | 3 | Pass | Pass |
Features
Full steel encasement and good sealing
Constituted by all steel sheet, good loading capacity
High dimension accuracy and excellent interchangeability
Water-proof, fire-proof, antisepsis and sound insulation
Elaborated made and good decorative effect
Application
Anti-Stctic Calcium Sulphate raised floor is widely used in telecommunication room, power station, computer room, factory clean room and other anti-static requiring places.
